Bulletpoint 8 Gang Electronic Switch Panel - 8 Circuit Relay System for Accessories
$164.99
SKU BMS-Switch8Gang
Bulletpoint 8 Gang Electronic Switch Panel - 8 Circuit Relay System for Accessories
WHAT'S INCLUDED?
(1x) 8 Gang Switch Panel
(1x) Controller Box
(1x) Set of Installation Hardware
(1x) Switch Panel Wiring Harness
(1x) Wiring Harness for powering Switch Panel
(1x) Fuse Tap
(1x) Pack of Zip Ties
(1x) Heavy Duty Power Cables (red & black)
(1x) Heavy Duty Short Red Power Cable
(1x) Accessory Sticker Sheet
(1x) 80A Circuit Breaker
(1x) Control Box Flush Mount
(1x) Control Box Angled Bracket
(1x) Switch Panel Flush Mount
(1x) Switch Panel Angled Mount
(1x) Extra 5A Fuse
(2x) Extra 10A Fuses
(2x) Extra 20A Fuses
(1x) Extra 30A Fuse
COMPATIBILITY
Say goodbye to a mess of cluttered wires and harnesses! Customize your command center and control up to 8 different lights or electronic accessories with the Bulletpoint 8 Circuit Switch Panel.
This universal electronic 8 switch relay system is the ultimate upgrade for off-roaders, emergency response vehicles and work vehicles. This kit includes everything for a clean install and results in a central management system to control all of your accessories.
Switch Panel Features
With the tap of a finger, you can control up to 8 different accessories using the 8 circuit switch panel. The auto-dimming backlit screen makes it easy to see and operate at any hour, day or night.
The buttons are pre-programmed to be continuous (i.e. turning on the accessory keeps it on until you push the button again to turn it off). However, it is possible to program any of the buttons to be momentary meaning that you need to push and hold the button to enable an accessory and releasing the button turns it off.
The switch panel itself is IP65 water resistant so it can handle any harsh conditions you may encounter.
Control Box Features

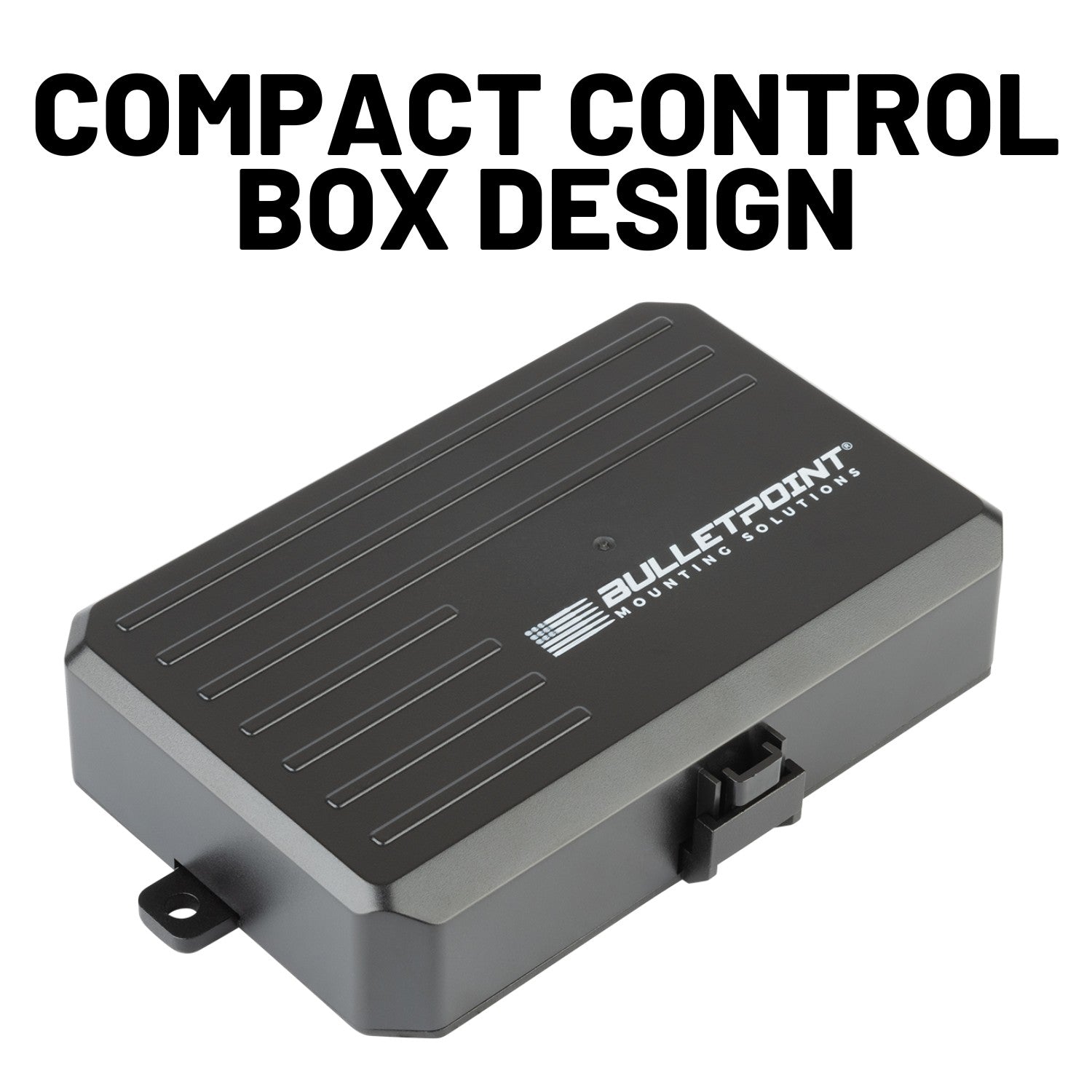

The compact design of our control box gives you the flexibility to install it almost anywhere in your engine bay. The solid-state relays found in the control box are also IP65 water resistant.
We include a built-in resettable fuse and the entire system features reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to your vehicle's fuse box without having to cut or splice into existing wiring.

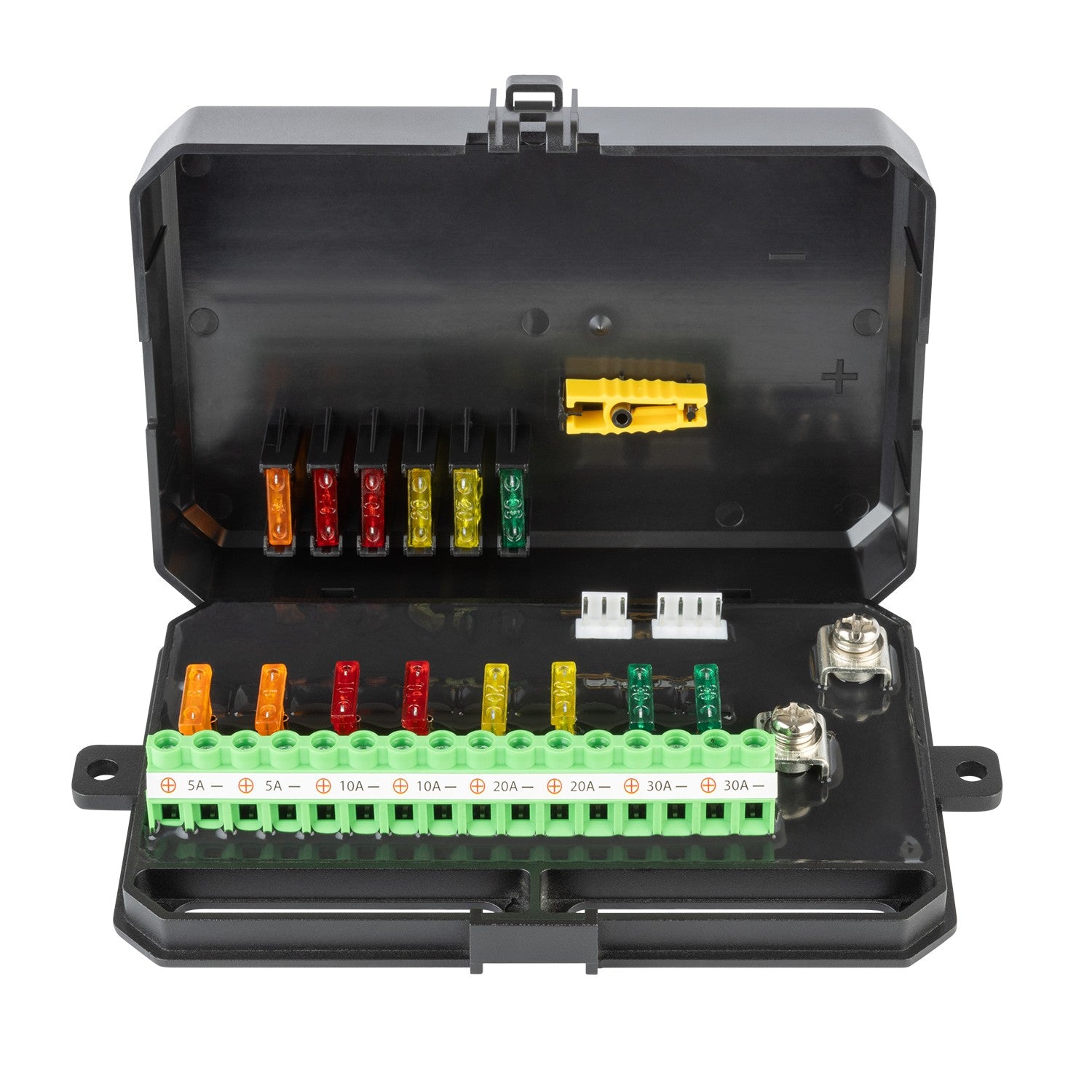

Each of the 8 circuits is fuse-protected and in the event that current draw exceeds the capacity of a specific circuit, a red status light will illuminate to indicate the error. Our control box features the following circuits ranging from 5A to 30A:
- (2x) 5A Circuits
- (2x) 10A Circuits
- (2x) 20A Circuits
- (2x) 30A Circuits
Compatible Switch Panel Holder

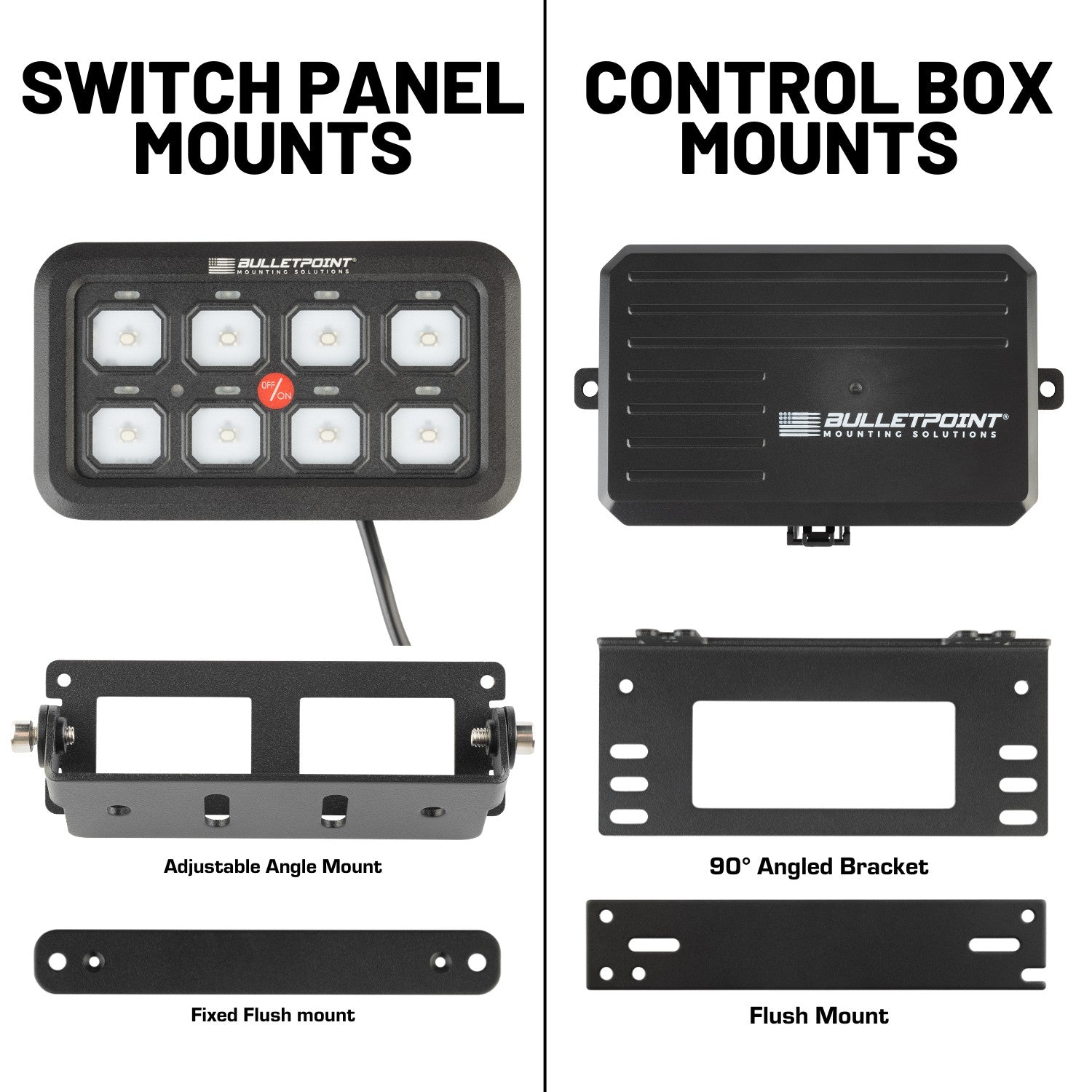

We include both a flush mount and an angled mounting bracket that is compatible with most RubiGrid® dash mounts.

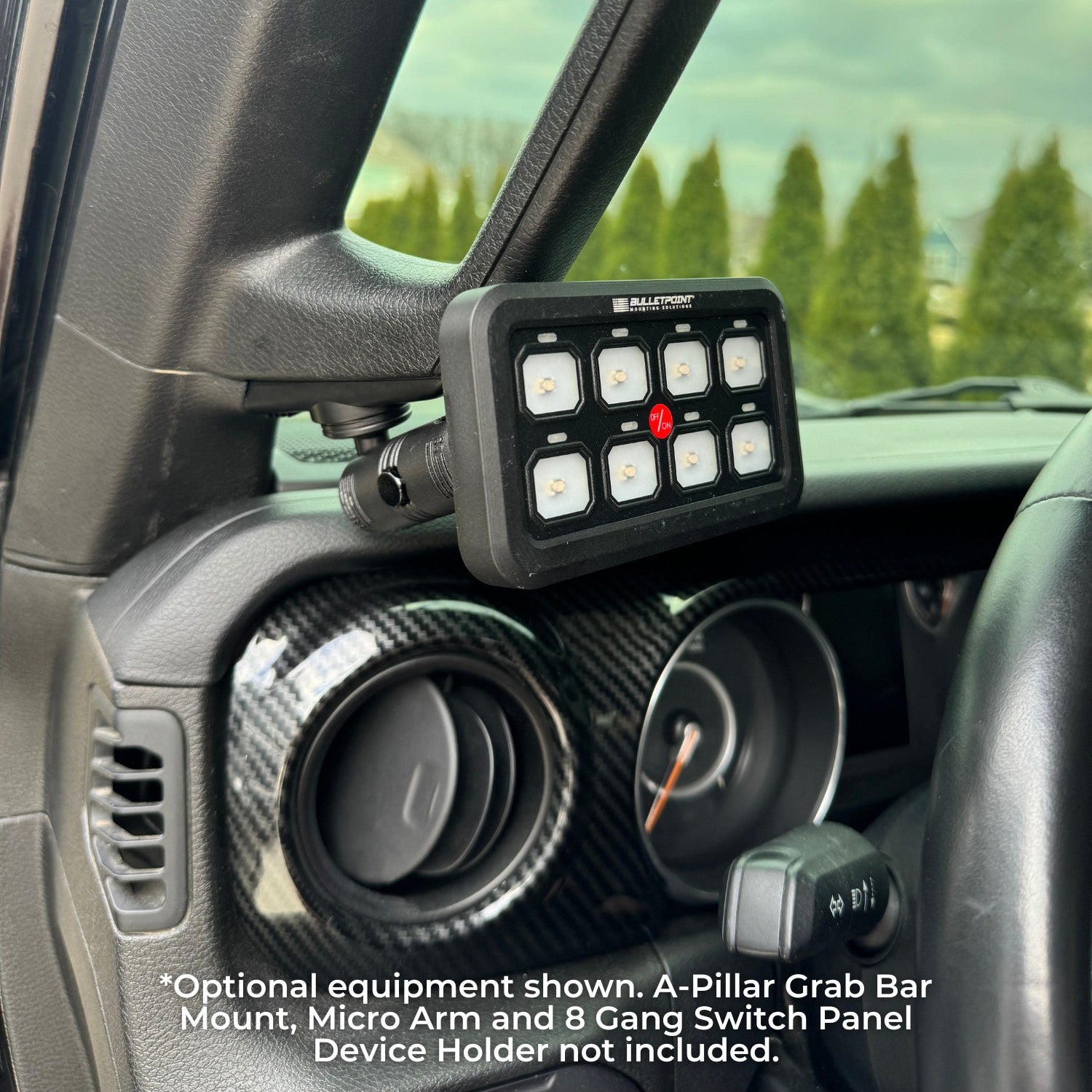

However, if you're looking to mount the included switch panel to your Bulletpoint mount via a mounting arm, we offer a compatible device holder (sold separately): Aluminum 8 Gang Switch Panel Device Holder.
Installation
Everything is included for a straightforward installation. Note: This is not a plug-and-play system and requires knowledge of vehicle electrical systems. Professional installation is strongly recommended.
Technical Specifications
- Input Voltage: 12V/24V DC
- Maximum Power: 600W at 12V/1200W at 24V
- Maximum Current: 60A
- Operating Temperature: -40°C-150°C (-40°F-300°F)
- Maximum Instantaneous Current: 100A
W

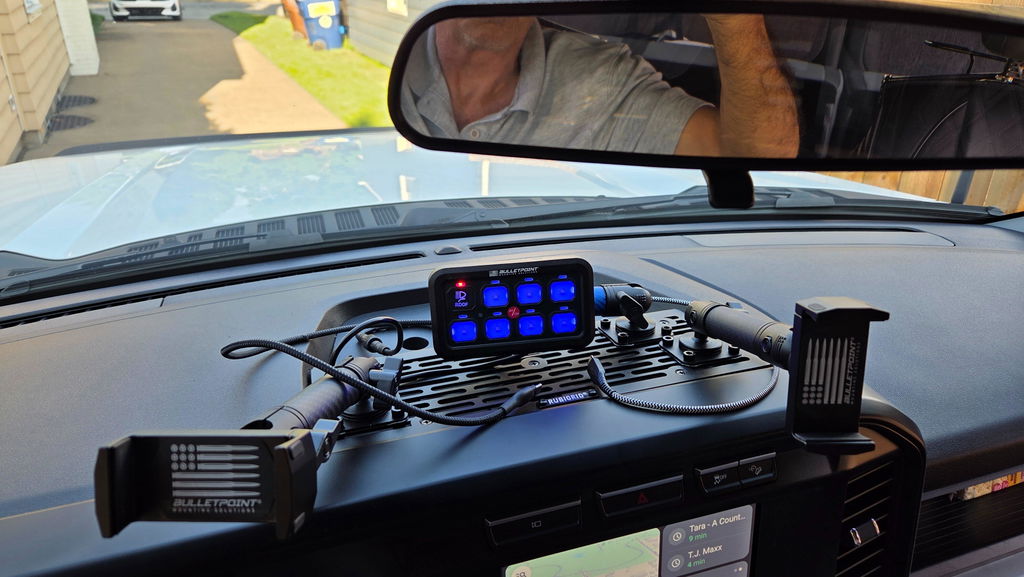

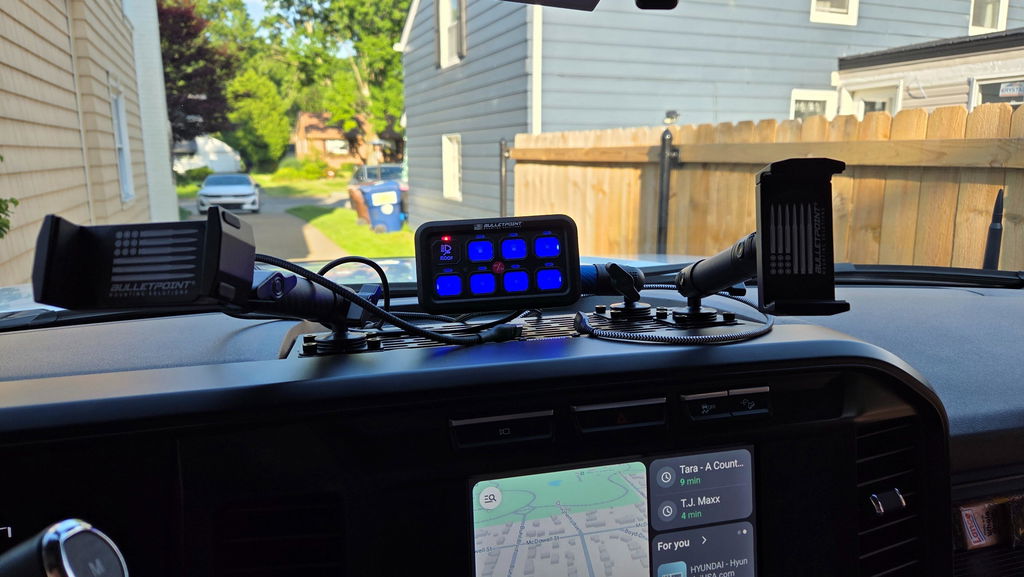

Installed the mounting system and the upfitter switches on my 2024 Super Duty. I hid the phone charging wires through the dash. The installation of the display was easy. The installation of the control box was slightly more difficult on because there is little room in the engine compartment. Not a Bulletpoint problem.
M
Works great super easy to install! Very clean look when adding additional switches and functions.
B
I got this for Christmas. I had to wait to get a few pieces before installing it but once they were in, I went to town! This is a good sturdy unit. I made sure I got this before getting accessory lights and other items that I needed this switch for.
For a novice at auto electronics the directions were not great, but a few YouTube videos helped me get everything wired properly (probably a bit ugly looking, but it works!). Jeep specific warning, figure out where you want to mount everything first. Especially under the hood, think through how you will add the wiring for new accessories down the road. You want that process to be as easy as possible.
Now that this is installed, I have a whole new wish list of toys I need to get for my Jeep
C
Perfect fit and finish for the whole system. This is on the Colorado 2024 mounting plate, with 2 phone mounts, GoPro, and the 8 gang switch panel system with the backing plate. Everything has its place, and I enjoy a clean setup. Yes I did some adjustments as needed for it to work to my liking, but that’s just the way I roll. Awesome that the give veteran discounts. 💯🤘
A
Love the 8 panel relay system. Very clean looking addition to my Jeep. I've also installed Bullet point dash mounting system. I'm completely satisfied with with Bullet point products. Plus the customer service is top notch.
s
nice quality. I like the programable functions.
M
Quality build, made with metal not plastic. Simple installation and fantastic features. Better than Aux because it has an 80 watt controller as opposed to 60. Extremely happy with my purchase of all Bulletpoint products! Highly recommend the brand. Fantastic customer service and great shipping time!
C
This thing is awesome. Kit comes with everything you need. Works like a dream.
F
The BulletPoint 8-Gang Switch System is an excellent addition for those who need organized control over multiple accessories in their vehicle. Its sleek design integrates seamlessly into the dashboard, providing a clean, factory-like appearance. The system is user-friendly, with backlit switches that are easy to see in low light. Installation is straightforward, especially for those with some DIY experience. The wiring is well-labeled, making connections simple. The only downside is that it might be overkill if you don’t have a lot of accessories to manage. Overall, it’s a high-quality, reliable switch system perfect for off-road enthusiasts who demand control and convenience.
M
I love this switch panel, it work as i wanted and fit perfect with the mount system. I feel that all is complete, strong and work right as suppose to.
R
Having a truck without upfitter switches has been a challenge, that is until I found the Bulletpoint 8 gang switch panel. This thing is awesome! Bulletpoint included everything needed for the install and it works flawlessly. Can't say enough good things about this product!
B
My only hurdle was the fuse tap does not fit the JT micro fuse layout. I ended up buying the tap I needed from Amazon, and now I have it all mounted and ready to go. The brackets that come in the kit are not Jeep specific either, so I dabbed my own and haven’t looked back!
J
I have a handful of this company's products and not a single one has been bad. Highly recommended their products.
F
So easy to install and safe for your vehicle. Definitely recommend
M
All my wiring in one convenient place installation was straight foward.
J
Got a dead unit and bulletpoint promptly replaced within a few days!
G
Great customer service
M
The whole unit is very high quality simple to install very clean and neat. Instructions are very simple and easy to understand. There’s a few YouTube tutorials that show how to use it and how to access some of the features that the instructions do not mention on the website or anywhere else
C
They have your back💯!
Had an issue with the back lighting on my switch panel. With one email they sent me a replacement with very fast delivery. This is why I feel this company is amazing!!! This is why I choose bulletpoint for all my mount needs. Appreciate you guys 🇺🇸💯
E
Fantastic, works great.
M
Some of the best products on the block. Easy set up, install, and painless wiring. Love it in my JT.
